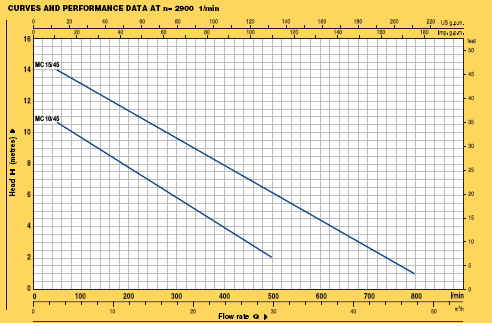

| RANGE OF PERFORMANCE |
|
Flow rate up to 800 l/min (48 m3/h)
Head up to 15 m |
|
| LIMITS OF USE |
|
Depth up to 10 m
Liquid temperature up to + 40°C
Passage of suspended solid bodies up to Ø 45 mm
For continuous duty: minimum immersion 290 mm from pump base |
|
|
| INSTALLATION AND USE |
|
| THE PUMPS IN THE MC SERIES ARE MADE OF EXCEPTIONALLY ROBUST HEAVY-GAUGE CAST IRON, RESISTANT TO ABRASION AND LONG-LASTING. THEY ARE EQUIPPED WITH A DOUBLECHANNEL IMPELLER WHICH ALLOWS THE DRAINAGE OF LIQUIDS CONTAINING SUSPENDED SOLID BODIES WITH DIMENSIONS UP TO Ø 45 mm AND SHORT FIBRES. THEY ARE IDEAL FOR PUMPING DRAINAGE WATER AND SEWAGE, WASTE WATER INCLUDING WATER MIXED WITH MUD, GROUNDWATER AND SURFACE WATER IN APPLICATIONS SUCH AS: CONDOMINIUMS, MULTI-STOREY AND UNDERGROUND CAR PARKS, WASHING AREAS AND INDUSTRY. |
|
|
|
|
CONSTRUCTION CHARACTERISTICS |
|
|
- PUMP BODY: cast iron, with threaded port ISO 228/1.
- MOTOR CASING AND BASE: cast iron.
- IMPELLER: double-channel, in stainless steel AISI 304.
- MOTOR SHAFT: stainless steel EN 10088-3 - 1.4104.
- DOUBLE SEAL: mechanical seal silicon carbide - NBR, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
- MOTOR: submersible asynchronous for continuous duty.
MCm: single-phase 220÷240 V - 50 Hz with thermal overload protector.
MC: three-phase 380÷415 V - 50 Hz.
- INSULATION: clas F .
- PROTECTION: IP 68.
STANDARD FEATURES:
MCm (single-phase) Float switch.
Neoprene power cable "H07 RN-F" length 10 metres with Schuko plug.
Control box with condenser.
MC (three-phase) Neoprene power cable "H07 RN-F" length 10 metres.
|
|
|
|
- control box for three-phase pumps 1.1 kW
- single-phase pumps without float switch
- other voltages or frequency 60 Hz
|
|
